Although our mortar bombs can be used in a range of smoothbore mortar weapon systems, they are best used with the ALAKRAN as both weapon and ammunition have been designed as a system.
Our High-Explosive Aerodynamic mortar bomb is intended for effective engagement of troops, shelters and lightly armoured targets.
Maximum diameter - 119,5 mm
Total length (with fuze) - 803,5 mm
Total length (without fuze) - 743 mm
Total weight - 14,76 Kg.
Load (TNT) - 2,950 Kg.
Fuze Weight - 0,201 Kg.
Nominal pressure (load 7) - 109 MPa
Maximum range (with Ventura Defense mortar) - 8,200m
Maximum propellant charge - 7 increments

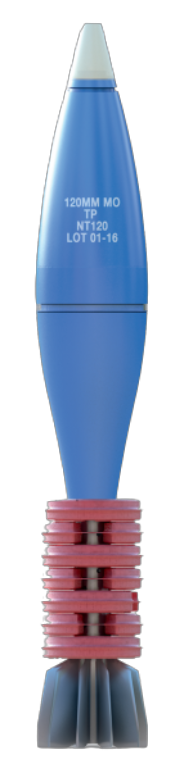

Pyrotechnic impact signature in the fuzed version (TP-F) does not cause fragments and provides excellent fire adjustment training.
Maximum diameter - 119,5 mm
Total length (with fuze) - 803,5 mm
Total length (without fuze) - 743 mm
Total weight - 14,76 Kg.
Load (concrete) - 2,950 Kg.
Fuze Weight - 0,201 Kg.
Nominal pressure (load 7) - 109 MPa
Maximum range (with Ventura Defense mortar) - 8,200m
Maximum propellant charge - 7 increments
Provides safe, realistic and low cost training for mortar crews, forward observers and fire direction control personnel. This ammunition is full caliber, ready to fire in all weather conditions.
Maximum diameter - 119,5 mm
Total length (with fuze) - 803,5 mm
Total length (without fuze) - 743 mm
Total weight - 14,76 Kg.
Load (concrete) - 2,950 Kg.
Fuze Weight - 0,201 Kg.
Nominal pressure (load 7) - 109 MPa
Maximum range (with Ventura Defense mortar) - 8,200m
Maximum propellant charge - 7 increments

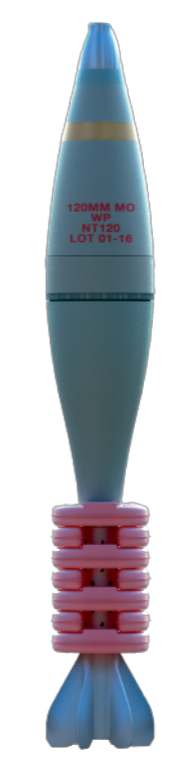

Our smoke rounds provide the commander with the abilit to conceal units from enemy observation. Our smoke mortar rounds use white phosphorus.
Maximum diameter - 119,5 mm
Total length (with fuze) - 803,5 mm
Total length (without fuze) - 743 mm
Total weight - 14,76 Kg.
Load (white phosphorus) - 3 Kg.
Fuze Weight - 0,201 Kg.
Nominal pressure (load 7) - 109 MPa
Maximum range (with Ventura Defense mortar) - 8,200m
Maximum propellant charge - 7 increments

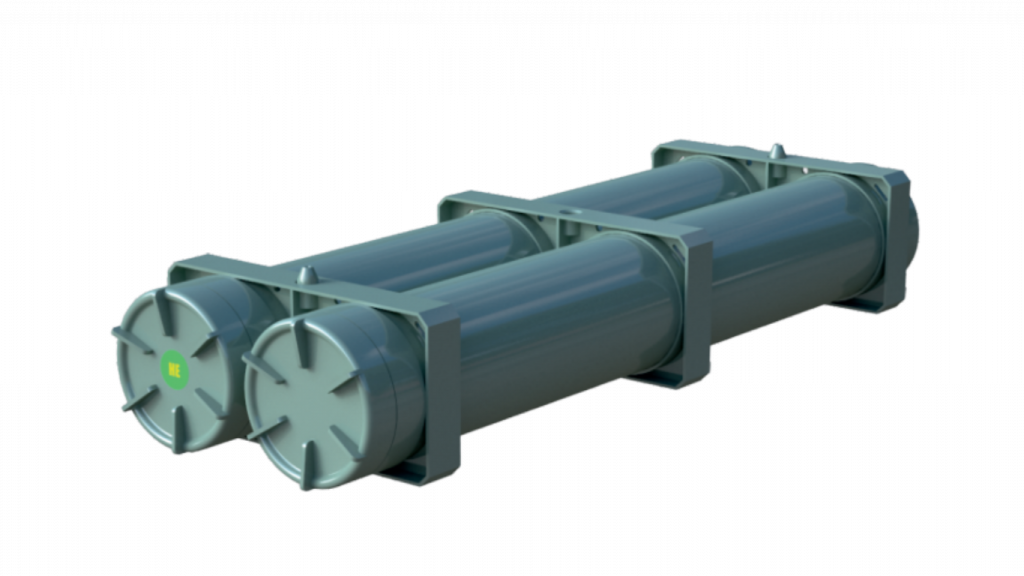

Optional - Plastic container with two grenades with fuze and 7 increments
Dimensions - 873,8 x 200 x 159 mm
Weight - 35.7 Kg.
UN Code - 0321
Class - 1.2 E

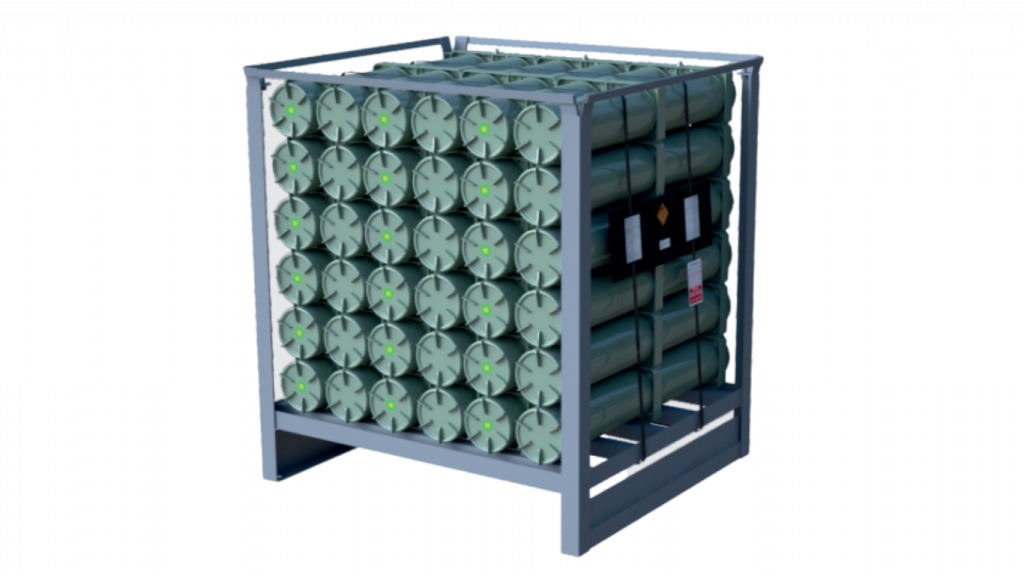

Total length - 900 mm
Total width - 1000 mm
Total height - 1115 mm
Total weight - 710 Kg
Number of rounds per pallet - 36
